Metric Sets

When we are monitoring the health of a resource or troubleshooting, we need to correlate multiple pieces of data to get an accurate picture. A metric set allows you to collect data across a group of metrics in parallel. You can set up metric sets for host, container, and pod resources.

Here is how you configure metric sets:

Video Tutorial

Step-by-Step Instructions

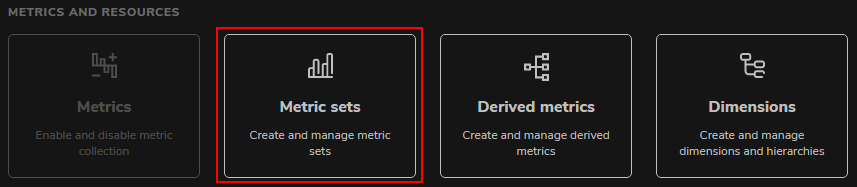

Before adjusting Metric Sets you must navigate to the Configuration UI and click on the Metric sets card under Metrics and Resources

metric-sets-card
Create a Metric Set
  1. In Resources, select the resource you are setting up a metric set for
  2. At the bottom of Metric sets, click the + sign
  3. A Create new metric set form will be presented
  4. Provide a Name and Description for the new metric set
  5. From Metric list, select a metric and click on the → arrow to place it in the metric set
  6. You can rearrange the Metric sequence by dragging and dropping the metrics
  7. You can remove a metric by clicking on the X
  8. Click the Save button
Edit a Metric Set
  1. In Metric sets, select the metric set to edit
  2. To add a new metric, select it from Metric list and click on the → arrow to place it in the metric set
  3. To remove a metric, click on the X next to the metric name
  4. To update the existing metric set, click the Update button
Delete a Metric Set
  1. In Metric sets, select the metric set to delete
  2. At the bottom of Metric sets, click the - sign
  3. Enter the metric set name (case sensitive) in the Delete metric set window
  4. Click the Delete button
